Arduino VENTUNO Q: The Next Generation AI, Robotics and Edge Computing Platform
Introduction

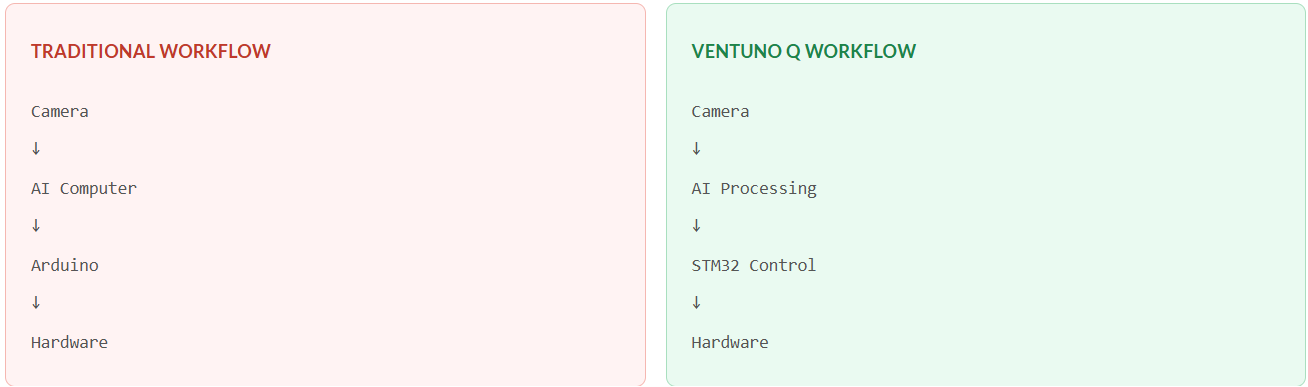

As Artificial Intelligence (AI), robotics, and autonomous systems continue to evolve, developers require hardware capable of performing intelligent decision-making directly at the edge. Traditional embedded systems often rely on multiple devices — an AI computer for perception and a microcontroller for hardware control — adding complexity, latency, and cost.
The Arduino VENTUNO Q redefines this workflow by integrating high-performance AI computing and deterministic real-time control into a single development platform. Designed for Edge AI, robotics, industrial automation, and computer vision, the VENTUNO Q enables developers to build intelligent systems that can perceive, decide, and act — all on one board.
1 What is Arduino VENTUNO Q?
Arduino VENTUNO Q is Arduino's most advanced embedded AI platform to date. It combines a powerful Qualcomm Dragonwing™ IQ8 processor with a dedicated STM32H5 real-time microcontroller, creating a heterogeneous dual-brain architecture capable of running Linux applications, AI models, and real-time hardware control simultaneously.
Unlike traditional Arduino boards, the VENTUNO Q is purpose-built for applications that require high-performance AI inference alongside precise interaction with the physical world.
2 Why is VENTUNO Q Different?

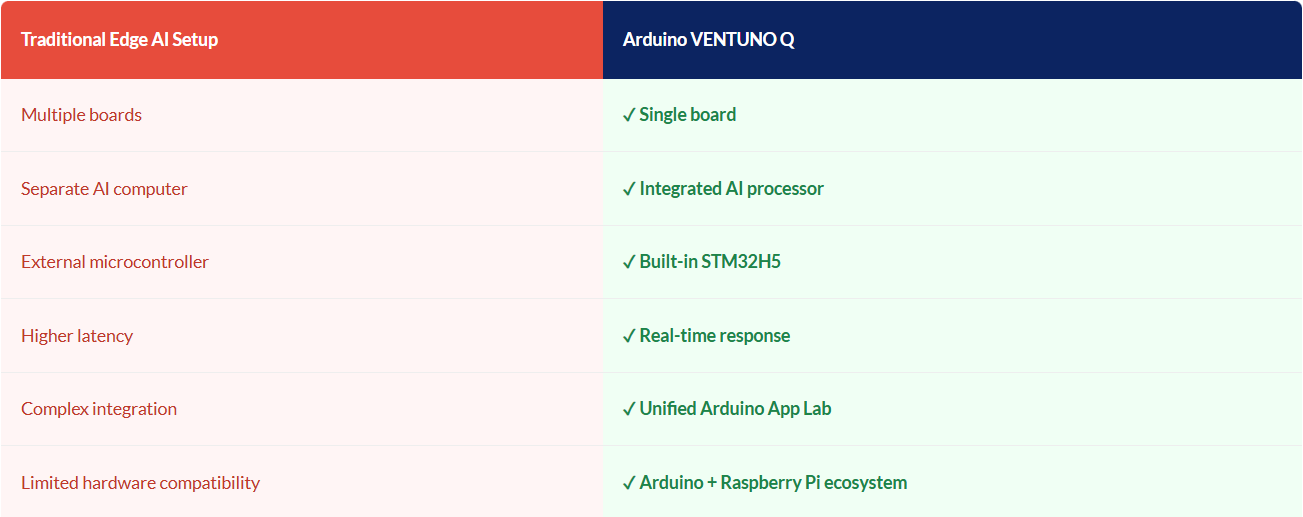

Traditional embedded AI systems typically require multiple devices. With the Arduino VENTUNO Q, everything runs on a single board — reducing system complexity, minimizing latency, and enabling completely offline AI applications.

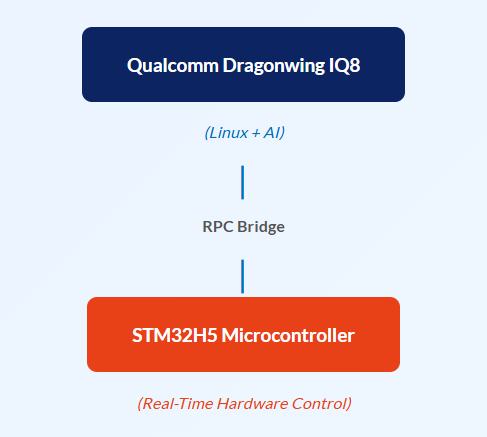

3 Dual-Brain Architecture
The Qualcomm processor handles AI inference, Linux applications, multimedia, networking, and robotics frameworks, while the STM32H5 ensures deterministic real-time control of motors, sensors, and industrial interfaces.
4 Key Features
✦ Dedicated AI processor with up to 40 TOPS of neural processing
✦ Linux (Ubuntu or Debian) operating system
✦ Real-time STM32H5 microcontroller
✦ Native support for AI, robotics, and automation
✦ Arduino App Lab integration
✦ Docker and Linux development support
✦ ROS 2 compatibility
✦ Multiple camera interfaces
✦ Industrial communication interfaces
✦ Wi-Fi 6, Bluetooth 5.3, and 2.5 Gigabit Ethernet
✦ Support for Arduino Shields, Raspberry Pi HATs, Modulino nodes, and Qwiic sensors
5 Technical Specifications
| Category | Specification |
| Main Processor | Qualcomm Dragonwing™ IQ8 (IQ-8275) |
| CPU | 8-Core Qualcomm Kryo |
| GPU | Qualcomm Adreno 623 |
| AI Processor | Qualcomm Hexagon NPU |
| AI Performance | Up to 40 Dense TOPS |
| Image Processor | Qualcomm Spectra 692 ISP |
| Operating System | Ubuntu or Debian Linux |
| Real-Time MCU | STM32H5F5 |
| MCU Architecture | ARM Cortex-M33 |
| MCU Clock | 250 MHz |
| MCU Flash | 4 MB |
| MCU RAM | 1.5 MB |
| Real-Time OS | Arduino Core on Zephyr OS |
| System RAM | 16 GB LPDDR5 |
| Internal Storage | 64 GB Industrial eMMC |
| Storage Expansion | M.2 NVMe Gen4 SSD |
| Wireless | Wi-Fi 6 (2.4 / 5 / 6 GHz) |
| Bluetooth | Bluetooth 5.3 |
| Ethernet | 2.5 Gigabit RJ45 |
| USB | 1× USB-C, 2× USB 3.0 Type-A |
| Camera Support | USB Cameras + Triple MIPI CSI |
| Display Support | HDMI, USB-C DisplayPort Alt Mode, MIPI DSI |
| Audio | Microphone In, Headphone Out, Line Out |
| CAN | CAN-FD |
| GPIO | High-Speed GPIO |
| PWM | Supported |
| Expansion | UNO Shields, Raspberry Pi HATs, Modulino, Qwiic |
| Power Input | USB-C (5V/3A), DC Jack (12–24V), Screw Terminal (7–24V) |
| Dimensions | 160 × 100 × 25.8 mm |
6 AI Capabilities
VENTUNO Q is designed for modern AI workloads and supports ready-to-deploy models through Arduino App Lab, Qualcomm AI Hub, and Edge Impulse.
Supported AI applications include:
- Local Large Language Models (LLMs)
- Vision Language Models (VLMs)
- Automatic Speech Recognition (ASR)
- Text-to-Speech (TTS)
- Object Detection
- Object Tracking
- Gesture Recognition
- Pose Estimation
- Image Classification
- ⚙️ Custom AI Models
7 Robotics Features
VENTUNO Q is purpose-built for robotics and autonomous machines.
Key capabilities include:
- ROS 2 compatibility
- Deterministic motor control
- High-speed GPIO
- CAN-FD communication
- Multi-camera perception
- Real-time actuation
- Vision-guided robotics
- Industrial automation workflows
8 Real-World Applications
VENTUNO Q is ideal for:
- Autonomous Mobile Robots
- Industrial Automation
- Smart Manufacturing
- Edge AI Vision Systems
- Smart Surveillance
- Offline AI Assistants
- Human-Machine Interfaces
- Healthcare Devices
- Predictive Maintenance
- Smart Agriculture
- Research and Education
9 Why Choose VENTUNO Q?
VENTUNO Q simplifies development by bringing AI inference, Linux applications, and deterministic hardware control together in one cohesive platform.
10 Conclusion
Arduino VENTUNO Q marks a significant evolution of the Arduino ecosystem. By combining an AI-accelerated Qualcomm processor, a real-time STM32 microcontroller, and a unified software environment, it empowers developers to build intelligent, connected, and autonomous systems without the complexity of traditional multi-device architectures.
Whether you're developing robotics, industrial automation, computer vision systems, or next-generation Edge AI applications, the Arduino VENTUNO Q provides a powerful platform that bridges perception, decision-making, and action — all on a single board.
